[Jenkins] Docker 기반 Jenkins quick start examples

ㅁ 개요

 Jenkins의 다중 파이프라인 구축 공부를 하는 중에 좋은 예제가 있어서 빠르게 Jenkins 환경 테스트 환경을 구축하기 위해 Docker 기반 예제가 있어서 설치 과정을 정리하였습니다. 참조한 GitHub는 이곳입니다.



ㅁ Git clone

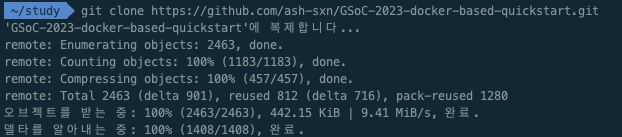

$ git clone https://github.com/ash-sxn/GSoC-2023-docker-based-quickstart.git                                                                   128 ↵  10038  11:55:21
'GSoC-2023-docker-based-quickstart'에 복제합니다...
remote: Enumerating objects: 2463, done.
remote: Counting objects: 100% (1183/1183), done.
remote: Compressing objects: 100% (457/457), done.
remote: Total 2463 (delta 901), reused 812 (delta 716), pack-reused 1280
오브젝트를 받는 중: 100% (2463/2463), 442.15 KiB | 9.41 MiB/s, 완료.
델타를 알아내는 중: 100% (1408/1408), 완료.

## 폴더명을 jenkins-quickstart 변경
$ mv GSoC-2023-docker-based-quickstart jenkins-quickstart

ㅇ Jenkins quick start sample을 다운로드 하였습니다.

ㅇ 폴더명을 jenkins-quickstart 변경하였습니다.





ㅁ Docker Compose 설명

services:
  sidekick_service:
    # Configuration for the sidekick service
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:sidekick_
    stdin_open: true
    tty: true
    entrypoint: sh -c "/usr/local/bin/keygen.sh /ssh-dir"  # Runs the keygen.sh script and specifies the output directory
    volumes:
      - agent-ssh-dir:/ssh-dir  # Mounts the agent-ssh-dir volume to the /ssh-dir path inside the container
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /ssh-dir/conductor_ok ] || exit 1" ]  # Checks if the conductor_ok file exists in the /ssh-dir path
      interval: 5s
      timeout: 10s
      retries: 5

  jenkins_controller:
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:simple_controller_
    restart: on-failure
    ports:
      - "8080:8080"
    volumes:
      - jenkins_home:/var/jenkins_home  # Mounts the jenkins_home volume to the /var/jenkins_home path inside the container
      - agent-ssh-dir:/ssh-dir  # Mounts the agent-ssh-dir volume to the /app path inside the container
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /ssh-dir/conductor_ok ] || exit 1" ]  # Checks if the conductor_ok file exists in the /ssh-dir path
      interval: 5s
      timeout: 10s
      retries: 5

  default_agent:
    image: jenkins/ssh-agent:5.5.0-jdk17
    container_name: desktop-jenkins_agent-1
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
      jenkins_controller:
        condition: service_started
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /home/jenkins/.ssh/authorized_keys ] || exit 1" ]  # Checks if the authorized_keys file exists in the /home/jenkins/.ssh path
      interval: 5s
      timeout: 10s
      retries: 5
    volumes:
      - agent-ssh-dir:/home/jenkins/.ssh:ro  # Mounts the agent-ssh-dir volume to the /home/jenkins/.ssh path inside the container as read-only

  maven:
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:maven_agent_
    container_name: desktop-jenkins_agent-1
    profiles:
      - maven
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
      jenkins_controller:
        condition: service_started
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /home/jenkins/.ssh/authorized_keys ] || exit 1" ]  # Checks if the authorized_keys file exists in the /home/jenkins/.ssh path
      interval: 5s
      timeout: 10s
      retries: 5
    volumes:
      - agent-ssh-dir:/home/jenkins/.ssh:ro  # Mounts the agent-ssh-dir volume to the /home/jenkins/.ssh path inside the container as read-only

  python:
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:python_agent_
    container_name: desktop-jenkins_agent-1
    profiles:
      - python
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
      jenkins_controller:
        condition: service_started
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /home/jenkins/.ssh/authorized_keys ] || exit 1" ]  # Checks if the authorized_keys file exists in the /home/jenkins/.ssh path
      interval: 5s
      timeout: 10s
      retries: 5
    volumes:
      - agent-ssh-dir:/home/jenkins/.ssh:ro  # Mounts the agent-ssh-dir volume to the /home/jenkins/.ssh path inside the container as read-only

  node:
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:node_agent_
    environment:
      - GITPOD_WORKSPACE_URL=${GITPOD_WORKSPACE_URL}
    container_name: desktop-jenkins_agent-1
    profiles:
      - node
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
      jenkins_controller:
        condition: service_started
    ports:
      - "3000:3000"
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /home/jenkins/.ssh/authorized_keys ] || exit 1" ]  # Checks if the authorized_keys file exists in the /home/jenkins/.ssh path
      interval: 5s
      timeout: 10s
      retries: 5
    volumes:
      - agent-ssh-dir:/home/jenkins/.ssh:ro  # Mounts the agent-ssh-dir volume to the /home/jenkins/.ssh path inside the container as read-only


  multi_jenkins_controller:
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:multi_controller_
    restart: on-failure
    ports:
      - "8080:8080"
    profiles:
      - multi
    volumes:
      - jenkins_home:/var/jenkins_home  # Mounts the jenkins_home volume to the /var/jenkins_home path inside the container
      - agent-ssh-dir:/ssh-dir  # Mounts the agent-ssh-dir volume to the /app path inside the container
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /ssh-dir/conductor_ok ] || exit 1" ]  # Checks if the conductor_ok file exists in the /ssh-dir path
      interval: 5s
      timeout: 10s
      retries: 5

  multi:
    image: ${DOCKERHUB_USERNAME}/jenkinsci-tutorials:node_agent_
    environment:
      - GITPOD_WORKSPACE_URL=${GITPOD_WORKSPACE_URL}
    container_name: desktop-jenkins_agent-1
    profiles:
      - multi
    depends_on:
      sidekick_service:
        condition: service_completed_successfully  # Depends on the successful completion of the sidekick_service
      multi_jenkins_controller:
        condition: service_started
    ports:
      - "3000:3000"
      - "5000:5000"
    healthcheck:
      test: [ "CMD-SHELL", "[ -f /home/jenkins/.ssh/authorized_keys ] || exit 1" ]  # Checks if the authorized_keys file exists in the /home/jenkins/.ssh path
      interval: 5s
      timeout: 10s
      retries: 5
    volumes:
      - agent-ssh-dir:/home/jenkins/.ssh:ro  # Mounts the agent-ssh-dir volume to the /home/jenkins/.ssh path inside the container as read-only


volumes:
  jenkins_home:
  agent-ssh-dir:
    name: agent-ssh-dir  # Creates a named volume called agent-ssh-dir

 ㅇ 위는 Git의 docker compose.yaml의 내용입니다.

 ㅇ 예제는 6개의 작업 예제가 있습니다.
   - 00_old_one_from_proposal
   - 01_simple_controller_plus_agent
   - 02_custom_docker_file_connecting_agent_and_controller
   - 03_maven ㅅTutorial
   - 04: Python Tutorial
   - 05: NodeJS Tutorial5_nodejs
   - 06: End-to-End Multibranch Pipeline Tutorial
   이 예제에는 수동으로 실행하기 위한 README 파일이 포함되어 있습니다.

ㅇ docker compose up -d를 사용하여 다양한 예제를 실행하려면 다음 인수를 명령에 추가하세요.
  - maven - 03_maven_tutorial => docker compose up -d maven
  - python - 04_python-tutorial => docker compose up -d python
  - Node노드 - 05_nodejs => docker compose up -d 노드
  - multi - 06_multibranch_pipeline => docker compose up -d multi
ㅇ 인수가 사용되지 않으면(예: docker compose up -d) 최신 기본 예제가 실행됩니다.

ㅁ Docker Compose 실행

$ docker-compose -f docker-compose.yaml up -d

 ㅇ Docker Compose 매니페스트를 사용하여 사전 구성된 Jenkins를 실행합니다.

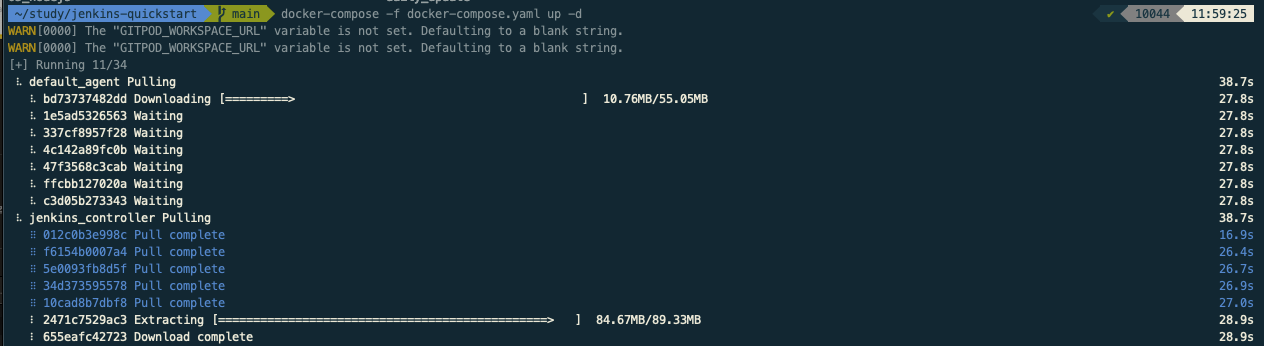

ㅇ 이미지를 pull 받는 모습입니다.

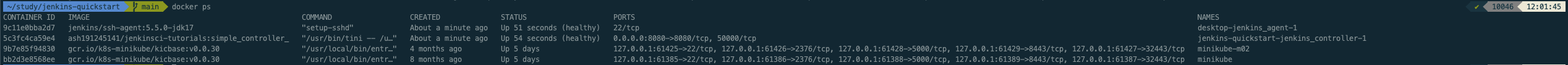

$ docker ps
CONTAINER ID   IMAGE                                                 COMMAND                  CREATED              STATUS                    PORTS                                                                                                                                  NAMES
9c11e0bba2d7   jenkins/ssh-agent:5.5.0-jdk17                         "setup-sshd"             About a minute ago   Up 51 seconds (healthy)   22/tcp                                                                                                                                 desktop-jenkins_agent-1
5c3fc4ca59e4   ash191245141/jenkinsci-tutorials:simple_controller_   "/usr/bin/tini -- /u…"   About a minute ago   Up 54 seconds (healthy)   0.0.0.0:8080->8080/tcp, 50000/tcp                                                                                                      jenkins-quickstart-jenkins_controller-1
9b7e85f94830   gcr.io/k8s-minikube/kicbase:v0.0.30                   "/usr/local/bin/entr…"   4 months ago         Up 5 days                 127.0.0.1:61425->22/tcp, 127.0.0.1:61426->2376/tcp, 127.0.0.1:61428->5000/tcp, 127.0.0.1:61429->8443/tcp, 127.0.0.1:61427->32443/tcp   minikube-m02
bb2d3e8568ee   gcr.io/k8s-minikube/kicbase:v0.0.30                   "/usr/local/bin/entr…"   8 months ago         Up 5 days                 127.0.0.1:61385->22/tcp, 127.0.0.1:61386->2376/tcp, 127.0.0.1:61388->5000/tcp, 127.0.0.1:61389->8443/tcp, 127.0.0.1:61387->32443/tcp   minikube

ㅇ 설치된 docker cotainer를 확인하였습니다.





ㅁ Jenkins 접속 테스트

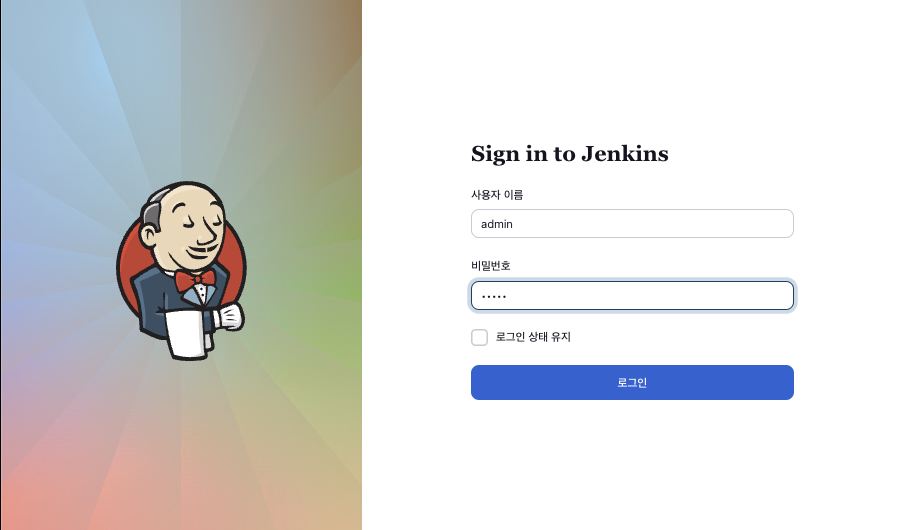

 ㅇ 기본 로그인 정보는 admin/admin 입니다.

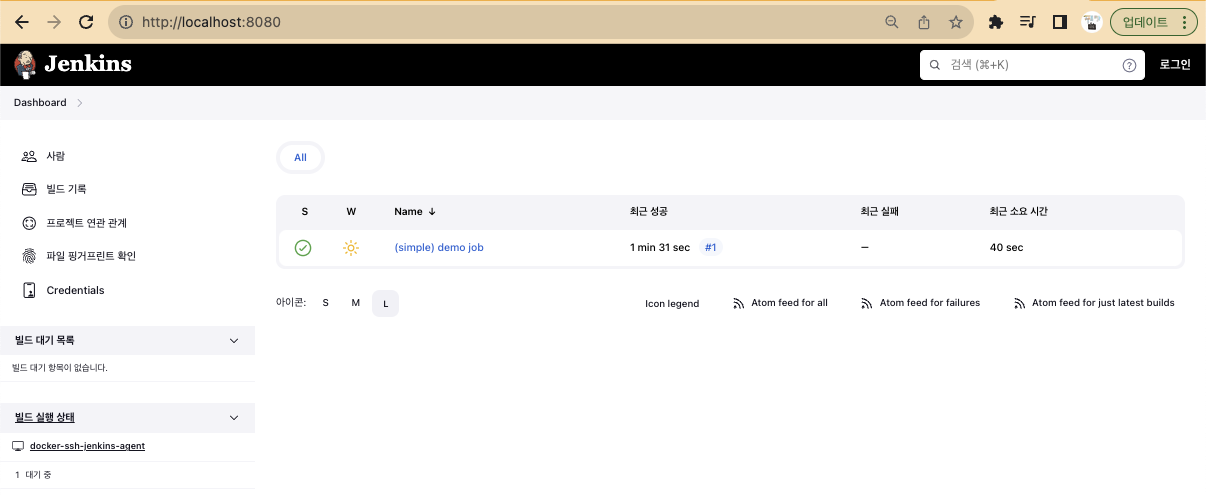

 ㅇ localhost:8080으로 접속하여 기본 demo job이 실행되고 있는 것을 확인하였습니다.





ㅁ 함께 보면 좋은 사이트

ㅇ 참조 GIT 소스 ash-sxn/GSoC-2023-docker-based-quickstart
